Comparison between:

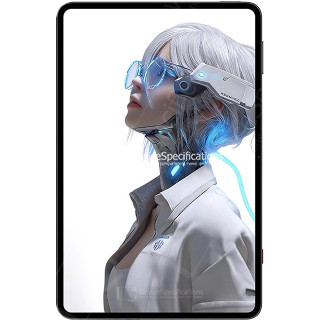

- REDMAGIC Gaming Tablet 5 Pro
- REDMAGIC Astra 2
Brand and model
Information about the brand, model and model alias (if any) of a specific device.
| REDMAGIC Gaming Tablet 5 Pro | |
 |
Design
Information about the dimensions and weight of the device, shown in different measurement units. Body materials, available colors, certifications.
| Width | 207.1 mm 20.71 cm 0.679 ft 8.154 in |
| Height | 134.2 mm 13.42 cm 0.44 ft 5.283 in |
| Thickness | 6.9 mm 0.69 cm 0.023 ft 0.272 in |
| Weight | 363 g 0.8 lbs 12.8 oz |
| Volume | 191.77 cm³ 11.65 in³ |
| Colors | Eclipse Starfrost |
| Body materials | Aluminium alloy |
Operating system
Operating system is the system software, which manages and controls the functioning of the hardware components of the device.
| Operating system (OS) | Android 16 |
| User interface (UI) | REDMAGIC OS 11.5 |
System on Chip (SoC)
A system on a chip (SoC) includes into a single chip some of the main hardware components of the mobile device.
| SoC | Qualcomm Snapdragon 8 Elite Gen 5 (SM8850-AC) |
| Process technology | 3 nm |
| CPU | 2x 4.61 GHz Oryon, 6x 3.63 GHz Oryon |
| CPU bits | 64 bit |
| Instruction set | ARMv9.2-A |
| CPU cores | 8 |
| CPU frequency | 4610 MHz |
| GPU | Qualcomm Adreno 840 (829) |
| GPU frequency | 1200 MHz |
| RAM capacity | 12 GB 16 GB |
| RAM type | LPDDR5T |
| RAM channels | Quad channel |
| RAM frequency | 5333 MHz |
| Qualcomm Hexagon NPU - 12 scalar + 8 vector + 1 accelerator Red Core R4 gaming chip Energy CUBE 3.0 AquaCore Cooling System 2.0 Liquid Metal 3.0 4D vapor chamber |
Storage
Every mobile device has a built-in storage (internal memory) with a fixed capacity.
| Storage | 256 GB 512 GB 1024 GB |
| UFS 4.1 Pro |
Display
The display of a mobile device is characterized by its technology, resolution, pixel density, diagonal length, color depth, etc.
| Type/technology | Real RGB OLED |
| Diagonal size | 9.06 in 230.12 mm 23.01 cm |
| Width | 7.68 in 195 mm 19.5 cm |
| Height | 4.81 in 122.2 mm 12.22 cm |
| Aspect ratio | 1.596:1 |
| Resolution | 2400 x 1504 pixels |
| Pixel density | 313 ppi 123 ppcm |
| Color depth | 30 bit 1073741824 colors |
| Display area | 86.01 % |
| Other features | Capacitive Multi-touch Scratch resistant |
| 2.5D curved glass screen Corning Gorilla Glass 3 Synaptics S3930T touch chip 185 Hz refresh rate 300 Hz touch sampling rate 2000 Hz instantaneous touch sampling rate 1100 cd/m² HBM 1600 cd/m² global peak brightness 100% DCI-P3 1000000:1 5280 PWM dimming DC Dimming SGS Low Blue Light Certified |
Sensors
Different sensors measure different physical quantities and convert them into signals recognizable by the mobile device.
| Sensors | Light Accelerometer Gyroscope Pedometer Geomagnetic Magnetometer Fingerprint Gravity |
| Side-mounted fingerprint sensor by Goodix Dual 0815 X-axis linear motors |
Main rear camera
The main camera of the mobile device is usually placed on its back and can be combined with one or more additional cameras.
| Sensor model | OmniVision OV13B10 |
| Sensor type | PureCel |
| Sensor format | 1/3.06" |
| Pixel size | 1.12 µm 0.001120 mm |
| Aperture | f/2.4 |
| Focal length and 35 mm equivalent | 2.85 mm 21 mm *(35 mm / full frame) |
| Flash type | Dual LED |
| Image resolution | 4130 x 3120 pixels 12.89 MP |
| Video resolution | 3840 x 2160 pixels 8.29 MP |
| Video FPS | 30 fps |
| Features | Autofocus Digital zoom Digital image stabilization Geotagging Panorama HDR Touch focus White balance settings ISO settings Exposure compensation |
Front camera
Modern smartphones have one or more front cameras and their positioning has led to various design concepts – pop-up camera, rotating camera, notch, punch hole, under-display camera, etc.
| Sensor model | OmniVision OV08X |
| Sensor type | PureCel |
| Sensor format | 1/5.66" |
| Pixel size | 0.7 µm 0.000700 mm |
| Aperture | f/2.2 |
| Focal length and 35 mm equivalent | 1.85 mm 15.8 mm *(35 mm / full frame) |
| Image resolution | 3200 x 2400 pixels 7.68 MP |
| Video resolution | 1920 x 1080 pixels 2.07 MP |
| Video FPS | 30 fps |
| Features | Face detection Face unlock |
Audio
Information about the type of speakers and the audio technologies supported by the device.
| Speaker | Stereo speakers |
| Dual 1227 stereo speakers N'Bass tuning Dual microphone with stereo sound recording |
Radio
The radio in a mobile device is a built-in FM radio receiver.
| Radio | No |
Wi-Fi
Wi-Fi is a technology that provides wireless data connections between various devices within a short range.
| Wi-Fi | 802.11a 802.11b 802.11g 802.11n 802.11n 5GHz 802.11ac Wi-Fi 6 (802.11ax) Wi-Fi 7 (802.11be) Wi-Fi Hotspot Wi-Fi Direct Wi-Fi Display |
Bluetooth
Bluetooth is a standard for secure wireless data transfer between different types of devices over short distances.
| Version | 5.4 |
| Features | A2DP LE |
USB
The Universal Serial Bus (USB) is an industry standard that allows different electronic devices to exchange data.
| Connector type | USB Type-C |
| Version | 3.2 |
| Features | Charging Mass storage On-The-Go |
| Two USB 3.2 ports Gen 2 - 10 Gbps DisplayPort Alt Mode |
Headphone jack
The headphone jack is an audio phone connector, a.k.a. an audio jack. The most widely used one in mobile devices is the 3.5 mm headphone jack.
| Headphone jack | No |
Connectivity
Information about other important connectivity technologies supported by the devices.
| Connectivity | Computer sync OTA sync Tethering |
Browser
A web browser is a software application for accessing, fetching, displaying and navigating through information on the World Wide Web.
| Browser | HTML HTML5 CSS 3 |
Audio file formats/codecs
Mobile devices support various audio file formats and codecs, which respectively store and code/decode digital audio data.
| Audio file formats/codecs | AAC AAC+ AMR AMR-WB aptX aptX HD eAAC+ FLAC MIDI MP3 OGG WMA WAV LDAC |
Video file formats/codecs
Mobile devices support various video file formats and codecs, which respectively store and code/decode digital video data.
| Video file formats/codecs | 3GPP AVI H.263 H.264 H.265 MP4 VP9 WebM WMV Xvid |
Battery
The batteries of mobile devices differ in capacity and technology. They provide the electrical charge needed for the functioning of the devices.
| Capacity | 8300 mAh |
| Type | Li-Polymer |
| Charger output power | 11 V / 7.25 A |
| Features | Fast charging Non-removable |
| Bypass charging |
| REDMAGIC Gaming Tablet 5 Pro |
