REDMAGIC Astra 2 Review

REDMAGIC Astra 2 AquaCore Cooling System 2.0

REDMAGIC positions the Astra 2 as the first mass‑produced tablet to implement a true liquid‑cooling system, and its AquaCore Cooling System 2.0 is engineered as a multi‑layer thermal architecture built to sustain stable high-level performance during extended gaming sessions, heavy multitasking, and high‑resolution media use, while maintaining system health. The system combines fluorinated liquid cooling, Liquid Metal 3.0, and a large‑area vapor chamber, forming a thermal pipeline that rivals the cooling solutions found in AI servers and high‑end desktop PCs.

At the core of the design is a fluorinated coolant - the same class of non‑conductive, high‑stability liquid used in cutting‑edge AI servers. This coolant directly draws heat away from critical components, including the battery, ensuring stable performance even under prolonged heavy load. It remains efficient in sub‑zero environments and provides excellent insulation, making it ideal for a mobile device that must operate reliably across a wide range of temperatures.

Bringing liquid cooling into a compact tablet required overcoming several engineering hurdles. REDMAGIC developed a piezoelectric ceramic micropump, refined through thousands of test combinations to balance driving force with minimal size. The coolant circulates through micron‑level laser‑cut channels integrated inside the chassis - ultra‑fine pathways that had to be optimized to ensure smooth, resistance‑free flow. After extensive membrane testing, the team achieved a design capable of maintaining consistent circulation without compromising internal space. Liquid cooling introduces structural challenges, especially in mass‑produced devices. To ensure long‑term durability, REDMAGIC uses an ultra‑low‑temperature bonding process and a new anti‑puncture membrane, enabling the cooling module to withstand tens of thousands of drop tests. The fully sealed system is leak‑proof, non‑conductive, and engineered to operate safely between ‑40°C and 70°C, exceeding typical industry standards for mobile devices.

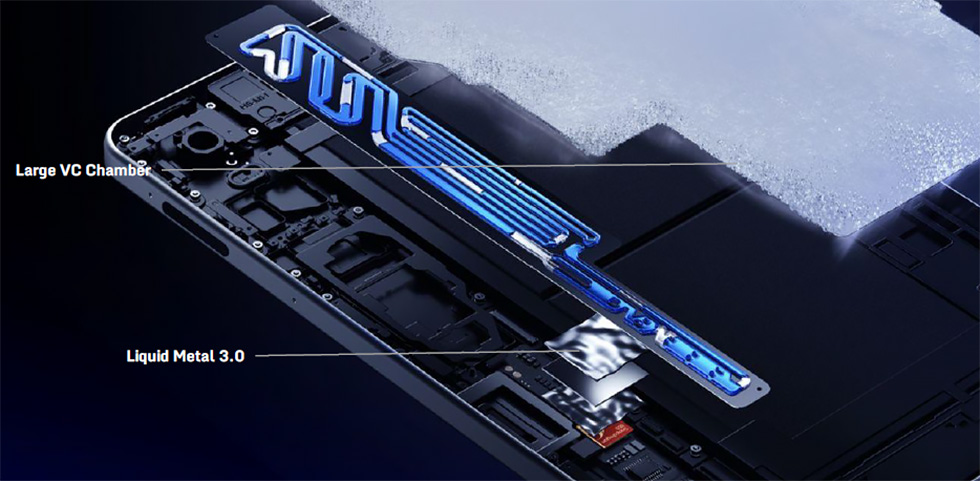

Complementing the liquid‑cooling loop is a redesigned vapor chamber with an industry‑first 4D structure. Dual‑side protrusions increase internal volume without adding weight, allowing the chamber to spread and dissipate heat more efficiently across the tablet's body. This large VC acts as the primary heat‑distribution layer, ensuring that thermal load from the chipset and GPU is rapidly moved away from hotspots.

Placed directly above the vapor chamber is Liquid Metal 3.0, a non‑corrosive thermal interface material with exceptionally high conductivity. Its role is to pull heat from the CPU and transfer it into the VC as quickly as possible, significantly reducing chip temperatures during peak workloads. This layer is crucial for maintaining stable frame rates in demanding games and preventing thermal throttling.
