Comparison between:
- TCL 501
- TCL 505
- TCL 605

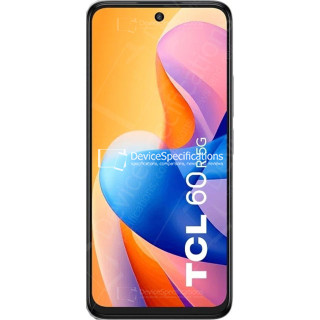

- TCL 60R 5G
Brand and model
Information about the brand, model and model alias (if any) of a specific device.
| TCL 501 | TCL 505 | TCL 605 | TCL 60R 5G | |
 |  |  |  | |
| Model alias | 24408 | - | - | - |
Design
Information about the dimensions and weight of the device, shown in different measurement units. Body materials, available colors, certifications.
| Width | 74.9 mm 7.49 cm 0.246 ft 2.949 in | 76.67 mm 7.667 cm 0.252 ft 3.019 in | 76.2 mm 7.62 cm 0.25 ft 3 in | 76.2 mm 7.62 cm 0.25 ft 3 in |
| Height | 156.5 mm 15.65 cm 0.513 ft 6.161 in | 168.29 mm 16.829 cm 0.552 ft 6.626 in | 165.6 mm 16.56 cm 0.543 ft 6.52 in | 165.62 mm 16.562 cm 0.543 ft 6.52 in |
| Thickness | 9.7 mm 0.97 cm 0.032 ft 0.382 in | 8.32 mm 0.832 cm 0.027 ft 0.328 in | 8.34 mm 0.834 cm 0.027 ft 0.328 in | 8.16 mm 0.816 cm 0.027 ft 0.321 in |
| Weight | - | 190 g 0.42 lbs 6.7 oz | 190 g 0.42 lbs 6.7 oz | 190 g 0.42 lbs 6.7 oz |
| Volume | 113.7 cm³ 6.91 in³ | 107.35 cm³ 6.52 in³ | 105.24 cm³ 6.39 in³ | 102.98 cm³ 6.25 in³ |
| Colors | Black Blue | Purple Blue | Black White Blue | Black |
| Body materials | Polycarbonate | Polycarbonate | Polycarbonate | Plastic |
| Certification | - | - | IP54 | IP54 |
SIM card
The Subscriber Identity Module (SIM) is used in mobile devices for storing data authenticating the subscribers of mobile services.
| SIM card type | Nano-SIM / microSD Nano-SIM | Nano-SIM / microSD Nano-SIM | Nano-SIM / microSD Nano-SIM | Nano-SIM eSIM |
| Number of SIM cards | 2 | 2 | 2 | 2 |
| Features | Dual SIM stand-by (Both cards are active. When one is busy, the other is not active) | Dual SIM stand-by (Both cards are active. When one is busy, the other is not active) | Dual SIM stand-by (Both cards are active. When one is busy, the other is not active) | Dual SIM stand-by (Both cards are active. When one is busy, the other is not active) |
Networks
A mobile (cellular) network is a radio system, which allows a large number of mobile devices to communicate with each other.
| GSM | GSM 850 MHz (B5) GSM 900 MHz (B8) GSM 1800 MHz (B3) GSM 1900 MHz (B2) | GSM 850 MHz (B5) GSM 900 MHz (B8) GSM 1800 MHz (B3) GSM 1900 MHz (B2) | GSM 850 MHz (B5) GSM 900 MHz (B8) GSM 1800 MHz (B3) GSM 1900 MHz (B2) | GSM 850 MHz (B5) GSM 900 MHz (B8) GSM 1800 MHz (B3) GSM 1900 MHz (B2) |
| UMTS | UMTS 850 MHz (B5) UMTS 900 MHz (B8) UMTS 1900 MHz (B2) UMTS 2100 MHz (B1) | UMTS 850 MHz (B5) UMTS 900 MHz (B8) UMTS 1900 MHz (B2) UMTS 2100 MHz (B1) | UMTS 850 MHz (B5) UMTS 900 MHz (B8) UMTS 1900 MHz (B2) UMTS 2100 MHz (B1) | UMTS 850 MHz (B5) UMTS 1700 MHz (B4) UMTS 1900 MHz (B2) |
| LTE | LTE-FDD 700 MHz (B28) LTE-FDD 800 MHz (B20) LTE-FDD 850 MHz (B5) LTE-FDD 900 MHz (B8) LTE-FDD 1800 MHz (B3) LTE-FDD 2100 MHz (B1) LTE-FDD 2600 MHz (B7) LTE-TDD 2300 MHz (B40) LTE-TDD 2500 MHz (B41) LTE-TDD 2600 MHz (B38) | LTE-FDD 700 MHz (B28) LTE-FDD 800 MHz (B20) LTE-FDD 850 MHz (B5) LTE-FDD 900 MHz (B8) LTE-FDD 1800 MHz (B3) LTE-FDD 2100 MHz (B1) LTE-FDD 2600 MHz (B7) LTE-TDD 2300 MHz (B40) LTE-TDD 2500 MHz (B41) LTE-TDD 2600 MHz (B38) | LTE-FDD 700 MHz (B28) LTE-FDD 800 MHz (B20) LTE-FDD 850 MHz (B5) LTE-FDD 900 MHz (B8) LTE-FDD 1800 MHz (B3) LTE-FDD 2100 MHz (B1) LTE-FDD 2600 MHz (B7) LTE-TDD 2300 MHz (B40) LTE-TDD 2500 MHz (B41) LTE-TDD 2600 MHz (B38) | LTE-FDD 700 MHz (B12) LTE-FDD 700 MHz (B13) LTE-FDD 700 MHz (B17) LTE-FDD 700 MHz (B28) LTE-FDD 800 MHz (B20) LTE-FDD 850 MHz (B5) LTE-FDD 850 MHz (B26) LTE-FDD 900 MHz (B8) LTE-FDD 1500 MHz (B32) LTE-FDD 1700 MHz (B4) LTE-FDD 1700 MHz (B66) LTE-FDD 1800 MHz (B3) LTE-FDD 1900 MHz (B2) LTE-FDD 1900 MHz (B25) LTE-FDD 2100 MHz (B1) LTE-FDD 2600 MHz (B7) LTE-TDD 2300 MHz (B40) LTE-TDD 2500 MHz (B41) LTE-TDD 2600 MHz (B38) |
| 5G NR | - | - | - | 5G-FDD 700 MHz (n28) 5G-FDD 800 MHz (n20) 5G-FDD 850 MHz (n5) 5G-FDD 900 MHz (n8) 5G-SDL 1500 MHz (n75) 5G-FDD 1700 MHz (n66) 5G-FDD 1800 MHz (n3) 5G-FDD 2100 MHz (n1) 5G-TDD 2300 MHz (n40) 5G-TDD 2500 MHz (n41) 5G-FDD 2600 MHz (n7) 5G-TDD 2600 MHz (n38) 5G-TDD 3500 MHz (n78) 5G-TDD 3700 MHz (n77) |
Mobile network technologies and bandwidth
Communication between devices within mobile networks is realized via various generations of network technologies, which provide different bandwidth.
| Mobile network technologies | UMTS EDGE GPRS HSPA+ LTE | UMTS EDGE GPRS HSPA+ LTE | UMTS EDGE GPRS HSPA+ LTE | UMTS EDGE GPRS HSPA+ LTE 5G SA 5G NSA |
Operating system
Operating system is the system software, which manages and controls the functioning of the hardware components of the device.
| Operating system (OS) | Android 14 Go edition | Android 14 | Android 15 | Android 15 |
| User interface (UI) | TCL UI | TCL UI | TCL UI | TCL UI |
System on Chip (SoC)
A system on a chip (SoC) includes into a single chip some of the main hardware components of the mobile device.
| SoC | MediaTek Helio G36 | MediaTek Helio G36 | MediaTek Helio G81 (MT6769) | MediaTek Dimensity 6300 (MT6835T) |
| Process technology | 12 nm | 12 nm | 12 nm | 6 nm |
| CPU | 4x 2.2 GHz ARM Cortex-A53, 4x 1.8 GHz ARM Cortex-A53 | 4x 2.2 GHz ARM Cortex-A53, 4x 1.8 GHz ARM Cortex-A53 | 2x 2.0 GHz ARM Cortex-A75, 6x 1.7 GHz ARM Cortex-A55 | 2x 2.4 GHz ARM Cortex-A76, 6x 2.0 GHz ARM Cortex-A55 |
| CPU bits | 64 bit | 64 bit | 64 bit | 64 bit |
| Instruction set | ARMv8-A | ARMv8-A | ARMv8.2-A | ARMv8.2-A |
| CPU cores | 8 | 8 | 8 | 8 |
| CPU frequency | 2200 MHz | 2200 MHz | 2000 MHz | 2400 MHz |
| GPU | IMG PowerVR GE8320 | IMG PowerVR GE8320 | ARM Mali-G52 MC2 | ARM Mali-G57 MC2 |
| GPU cores | - | - | 2 | 2 |
| GPU frequency | 680 MHz | 680 MHz | - | 1072 MHz |
| RAM capacity | 2 GB | 4 GB | 8 GB | 6 GB |
| RAM type | LPDDR4X | LPDDR4X | LPDDR4X | LPDDR4X |
| RAM channels | Double channel | Double channel | Double channel | Double channel |
| RAM frequency | 1600 MHz | 1600 MHz | 1800 MHz | 2133 MHz |
| - | - | - | Virtual RAM expansion - 10 GB |
Storage
Every mobile device has a built-in storage (internal memory) with a fixed capacity.
| Storage | 32 GB | 128 GB | 128 GB 256 GB | 256 GB |
| eMMC 5.1 | - | - | - |
Memory cards
Memory cards are used in mobile devices for expanding their external storage capacity.
| Types | microSD microSDHC microSDXC | microSD microSDHC microSDXC | microSD microSDHC microSDXC | microSD microSDHC microSDXC |
Display
The display of a mobile device is characterized by its technology, resolution, pixel density, diagonal length, color depth, etc.
| Type/technology | IPS | IPS | IPS | IPS |
| Diagonal size | 6 in 152.4 mm 15.24 cm | 6.75 in 171.45 mm 17.15 cm | 6.7 in 170.18 mm 17.02 cm | 6.7 in 170.18 mm 17.02 cm |
| Width | 2.66 in 67.55 mm 6.76 cm | 2.77 in 70.36 mm 7.04 cm | 2.75 in 69.84 mm 6.98 cm | 2.75 in 69.84 mm 6.98 cm |
| Height | 5.38 in 136.61 mm 13.66 cm | 6.16 in 156.35 mm 15.63 cm | 6.11 in 155.19 mm 15.52 cm | 6.11 in 155.19 mm 15.52 cm |
| Aspect ratio | 2.022:1 | 2.222:1 | 2.222:1 | 2.222:1 |
| Resolution | 540 x 1092 pixels | 720 x 1600 pixels | 720 x 1600 pixels | 720 x 1600 pixels |
| Pixel density | 203 ppi 79 ppcm | 260 ppi 102 ppcm | 262 ppi 102 ppcm | 262 ppi 102 ppcm |
| Color depth | 24 bit 16777216 colors | 24 bit 16777216 colors | 24 bit 16777216 colors | 24 bit 16777216 colors |
| Display area | 78.98 % | 85.53 % | 86.16 % | 86.15 % |
| Other features | Capacitive Multi-touch Scratch resistant | Capacitive Multi-touch Scratch resistant | Capacitive Multi-touch Scratch resistant | Capacitive Multi-touch Scratch resistant |
| 2.5D curved glass screen | 2.5D curved glass screen 90 Hz refresh rate | 2.5D curved glass screen 90 Hz refresh rate | 2.5D curved glass screen 120 Hz refresh rate |
Sensors
Different sensors measure different physical quantities and convert them into signals recognizable by the mobile device.
| Sensors | Accelerometer | Proximity Light Accelerometer Fingerprint | Proximity Light Accelerometer Fingerprint | Proximity Light Accelerometer Compass Gyroscope Barometer Fingerprint Hall |
| - | Side-mounted fingerprint sensor | Side-mounted fingerprint sensor | Side-mounted fingerprint sensor |
Main rear camera
The main camera of the mobile device is usually placed on its back and can be combined with one or more additional cameras.
| Sensor model | - | SK Hynix Hi-5021Q | SK Hynix Hi-5021Q | - |
| Sensor type | CMOS BSI | CMOS BSI | CMOS BSI | CMOS BSI |
| Sensor format | - | - | - | 1/2.5" |
| Pixel size | - | 0.7 µm 0.000700 mm | 0.7 µm 0.000700 mm | 0.7 µm 0.000700 mm |
| Aperture | f/2.2 | f/1.8 | f/1.8 | f/1.8 |
| Field of view | - | 79 ° | 79 ° | 77 ° |
| Flash type | LED | Dual LED | Dual LED | Dual LED |
| Image resolution | 2560 x 1944 pixels 4.98 MP | 8120 x 6180 pixels 50.18 MP | 8120 x 6180 pixels 50.18 MP | 8120 x 6180 pixels 50.18 MP |
| Video resolution | 1920 x 1080 pixels 2.07 MP | 1920 x 1080 pixels 2.07 MP | 1920 x 1080 pixels 2.07 MP | 1920 x 1080 pixels 2.07 MP |
| Video FPS | 30 fps | 30 fps | 30 fps | 30 fps |
| Features | Autofocus Digital zoom Geotagging Panorama Touch focus White balance settings ISO settings | Autofocus Continuous shooting Digital zoom Geotagging Panorama HDR Touch focus Face detection White balance settings ISO settings Exposure compensation Self-timer Scene mode Macro mode Phase detection autofocus (PDAF) | Autofocus Continuous shooting Digital zoom Geotagging Panorama HDR Touch focus Face detection White balance settings ISO settings Exposure compensation Self-timer Scene mode Macro mode Phase detection autofocus (PDAF) | Autofocus Continuous shooting Digital zoom Digital image stabilization Geotagging Panorama HDR Touch focus Face detection White balance settings ISO settings Exposure compensation Self-timer Scene mode Macro mode Phase detection autofocus (PDAF) |
Depth-sensing camera
Specifications of the depth sensor of the device. Depth sensors measure the distance between the subject and the camera, enabling features such as bokeh in portraits.
| Sensor format | - | 1/5" | 1/5" | - |
| Pixel size | - | 1.75 µm 0.001750 mm | 1.75 µm 0.001750 mm | - |
| Aperture | - | f/2.4 | f/2.4 | - |
| Image resolution | - | 2 MP | 2 MP | - |
| - | Angle of view - 89° | Angle of view - 89° | - |
Front camera
Modern smartphones have one or more front cameras and their positioning has led to various design concepts – pop-up camera, rotating camera, notch, punch hole, under-display camera, etc.
| Sensor type | CMOS BSI | CMOS BSI | CMOS BSI | CMOS BSI |
| Sensor format | - | 1/5" | 1/5" | 1/4" |
| Pixel size | - | 1.12 µm 0.001120 mm | 1.12 µm 0.001120 mm | 1.12 µm 0.001120 mm |
| Aperture | f/2.8 | f/2.2 | f/2.2 | f/2 |
| Field of view | - | 76.8 ° | 76.8 ° | 78 ° |
| Number of lenses | - | 3 | 3 | - |
| Image resolution | 1920 x 1080 pixels 2.07 MP | 2560 x 1944 pixels 4.98 MP | 2560 x 1944 pixels 4.98 MP | 3264 x 2448 pixels 7.99 MP |
| Video resolution | 1280 x 720 pixels 0.92 MP | 1920 x 1080 pixels 2.07 MP | 1920 x 1080 pixels 2.07 MP | 1920 x 1080 pixels 2.07 MP |
| Video FPS | 30 fps | 30 fps | 30 fps | 30 fps |
| Features | Face unlock | Face unlock | Face unlock | Face unlock Face detection |
Audio
Information about the type of speakers and the audio technologies supported by the device.
| Speaker | Loudspeaker Earpiece | Loudspeaker Earpiece | Loudspeaker Earpiece | Loudspeaker Earpiece |
Radio
The radio in a mobile device is a built-in FM radio receiver.
| Radio | - | Yes | Yes | Yes |
Tracking/Positioning
Information about the positioning and navigation technologies supported by the device.
| Tracking/Positioning | GPS A-GPS GLONASS BeiDou Galileo | GPS A-GPS GLONASS BeiDou Galileo | GPS A-GPS GLONASS BeiDou Galileo | GPS GLONASS BeiDou Galileo |
Wi-Fi
Wi-Fi is a technology that provides wireless data connections between various devices within a short range.
| Wi-Fi | 802.11a 802.11b 802.11g 802.11n 802.11n 5GHz 802.11ac Dual band Wi-Fi Hotspot Wi-Fi Direct Wi-Fi Display | 802.11a 802.11b 802.11g 802.11n 802.11n 5GHz 802.11ac Dual band Wi-Fi Hotspot Wi-Fi Direct Wi-Fi Display | 802.11a 802.11b 802.11g 802.11n 802.11n 5GHz 802.11ac Dual band Wi-Fi Hotspot Wi-Fi Direct Wi-Fi Display | 802.11a 802.11b 802.11g 802.11n 802.11n 5GHz 802.11ac Dual band Wi-Fi Hotspot Wi-Fi Direct Wi-Fi Display |
Bluetooth
Bluetooth is a standard for secure wireless data transfer between different types of devices over short distances.
| Version | 5.1 | 5.1 | 5.1 | 5.3 |
| Features | A2DP EDR LE | A2DP EDR LE | A2DP EDR LE | A2DP EDR LE |
USB
The Universal Serial Bus (USB) is an industry standard that allows different electronic devices to exchange data.
| Connector type | USB Type-C | USB Type-C | USB Type-C | USB Type-C |
| Version | 2.0 | 2.0 | 2.0 | 2.0 |
| Features | Charging Mass storage | Charging Mass storage | Charging Mass storage | Charging Mass storage On-The-Go |
Headphone jack
The headphone jack is an audio phone connector, a.k.a. an audio jack. The most widely used one in mobile devices is the 3.5 mm headphone jack.
| Headphone jack | Yes | Yes | Yes | Yes |
Connectivity
Information about other important connectivity technologies supported by the devices.
| Connectivity | Computer sync OTA sync Tethering VoLTE | Computer sync OTA sync Tethering NFC VoLTE VoWifi | Computer sync OTA sync Tethering NFC VoLTE VoWifi | Computer sync OTA sync Tethering |
Browser
A web browser is a software application for accessing, fetching, displaying and navigating through information on the World Wide Web.
| Browser | HTML HTML5 CSS 3 | HTML HTML5 CSS 3 | HTML HTML5 CSS 3 | HTML HTML5 CSS 3 |
Audio file formats/codecs
Mobile devices support various audio file formats and codecs, which respectively store and code/decode digital audio data.
| Audio file formats/codecs | AAC AAC+ AMR AMR-WB aptX aptX HD FLAC MIDI MP3 WAV | AAC AAC+ AMR AMR-WB aptX aptX HD FLAC MIDI MP3 WAV | AAC AAC+ AMR AMR-WB aptX aptX HD FLAC MIDI MP3 WAV | AAC AMR aptX aptX HD FLAC MIDI MP3 WAV HE-AAC v1 HE-AAC v2 AWB OGG VORBIS OPUS |
Video file formats/codecs
Mobile devices support various video file formats and codecs, which respectively store and code/decode digital video data.
| Video file formats/codecs | 3GPP AVI DivX H.263 H.264 MKV MP4 WebM WMV Xvid | 3GPP AVI DivX H.263 H.264 MKV MP4 WebM WMV Xvid | 3GPP AVI DivX H.263 H.264 MKV MP4 WebM WMV Xvid | H.263 H.264 H.265 VP8 VP9 MPEG4 AV1 |
Battery
The batteries of mobile devices differ in capacity and technology. They provide the electrical charge needed for the functioning of the devices.
| Capacity | 3000 mAh | 5010 mAh | 5200 mAh | 5200 mAh |
| Type | Li-Polymer | Li-Polymer | Li-Polymer | Li-Polymer |
| Charger output power | 5 V / 2 A | 5 V / 2 A | 9 V / 2 A | 5 V / 2 A |
| Features | Fast charging Non-removable | Fast charging Non-removable | Fast charging Non-removable | Fast charging Non-removable |
| TCL 501 | TCL 505 | TCL 605 | TCL 60R 5G |
